Have you ever wondered how high your Radio Controlled model could go?  Now you can find out.  Just install ZLog on your plane - be it a parkflyer, sailplane, hotliner, or 3D aerobatic.  At only a few grams, your plane won't know it's there.  Instantly know how high your flight went with the onboard display.  You can also record the complete flight for analysis on your PC with the USB interface (Z6R version).

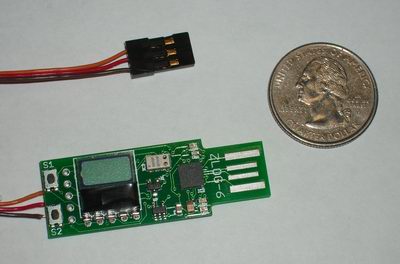

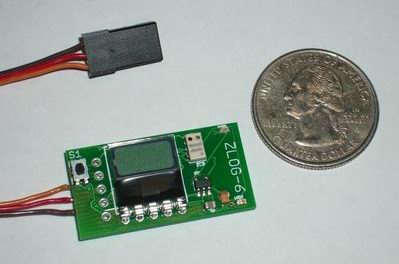

Z6R - Recording/Display Version   Z6D - Display Version
  • Onboard display shows altitude information in real-time.
  • Tracks maximum altitude - find out how high your aircraft flew!
  • Display and record altitude in feet or meters.
  • Altitude resolution of 1 foot/meter.
  • Record altitude data for later review.
  • Configurable data recording rate as fast as 10 samples per second.
  • USB Interface for configuration and data download, plot, and analysis.  No cable needed.  Plug directly into a USB slot.
  • Onboard controls allow configuration in the field.
  • Includes PC software.
  • Marks altitude data when triggered from an external signal.
  • Exports data in Excel .csv format or as GIF, bitmap or JPEG images.
  • Accepts wide range of input power: 3.5 - 16 volts. Power from your aircraft receiver.
  • Firmware upgradeable.
  • Only 6 grams.
  • 1.85" x 0.65" x 0.24" (47 mm x 16.5 mm x 6 mm).




  • Onboard display shows altitude information in real-time.
  • Tracks maximum altitude - find out how high your aircraft flew!
  • Display altitude in feet or meters.
  • Altitude resolution of 1 foot/meter.
  • Accepts wide range of input power: 3.5 - 16 volts. Power from your aircraft receiver.
  • Firmware upgradeable (using USB cable sold separately).
  • Only 3 grams.
  • 1.25" x 0.65" x 0.18" (31.8 mm x 16.5 mm x 4.6 mm).

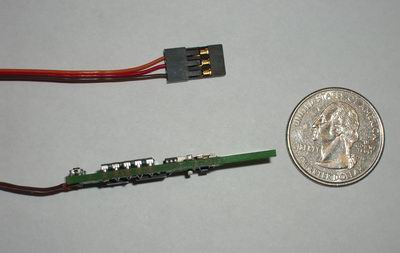

Very thin profile - easy to fit in any aircraft.

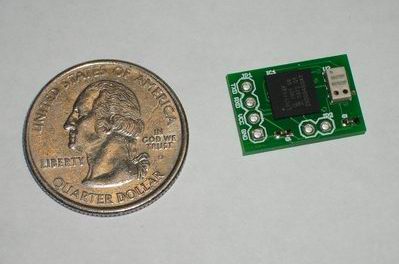

Z6M - Temperature / Pressure / Altitude Module for custom applications.
  • Modular unit for interfacing with your own custom project.
  • TTL Serial Interface for configuration and data I/O.
  • Accepts wide range of input power: 1.8 - 3.6 volts.
  • Measure altitude from -5000 to 100,000 feet (-1635 to 32808 meters).
    Resolution 1 ft / 1 meter.
  • Measure pressure from 10 to 1200 millibar.
    Resolution 0.024 mbar.
  • Measure temperature from -40 to +85 C.
    Resolution 0.01 C.
  • Firmware upgradeable (using USB cable sold separately).
  • Only 1 gram.
  • 0.75" x 0.5" x 0.14" (19 mm x 12.7 mm x 3.6 mm).

ZLog is designed and assembled in the USA from parts both foreign and domestic.

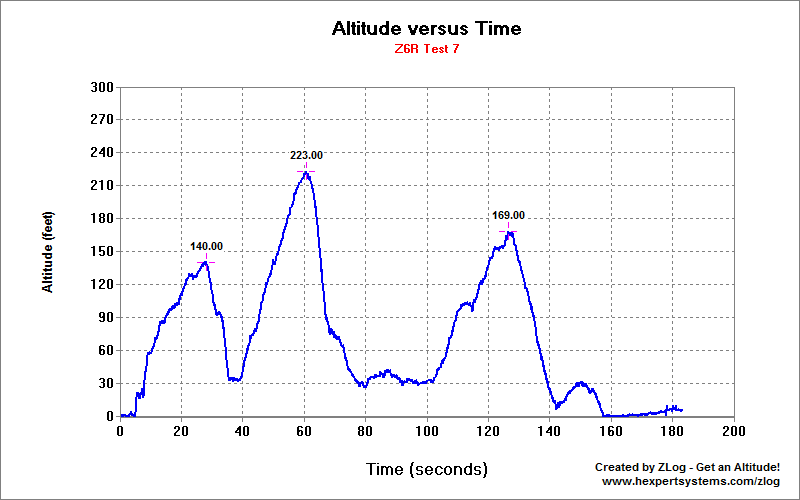

Sample Data Log from recording version:

Z6 Downloads

Z6 Feature Comparison

Z6 Order Page


Z6M Version 1.3 or later is compatible with OpenLog microSD logger.

The Z6M and OpenLog are straight pin-pin compatible.  Just supply 3.3 volts and it will automatically log Time, Altitude, Pressure, and Temperature once per second in a comma separated file onto a microSD card.  Great for those long-term altitude logging experiments like high altitude balloon flights.  Or use it to record temperature and pressure  for long-term weather logging.

OpenLog: http://www.sparkfun.com/products/9530

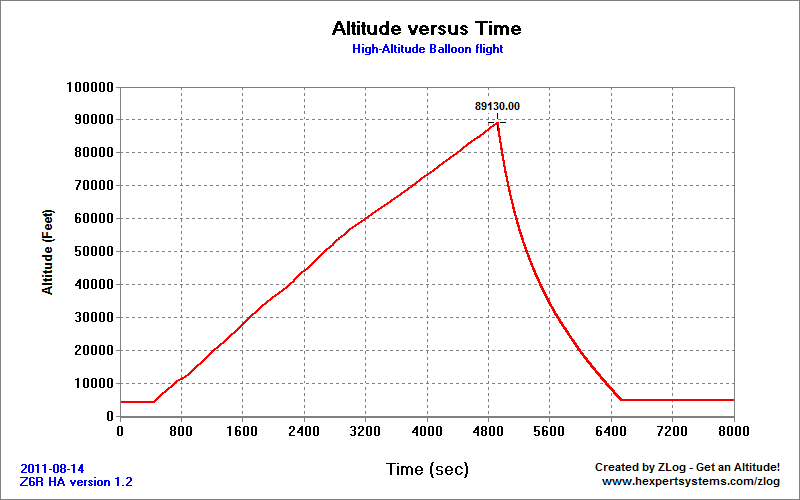

Z6R tested to Near-Space - 90,000 feet:

Note: Requires High-Altitude version firmware be loaded into Z6R.  Contact us for more information.
