MOD6

  • Integrated USB Connector
  • 4-digit LCD display
  • 1.85" x  0.65" x 0.18"
    47 mm x 16.5 mm x 4.6 mm
  • 6 grams.
  • 3.5 - 16.0 volts DC.
  • 19.5 milliamps.
  • ARM LPC1114 60MHz processor.
  • Reverse polarity protection.
  • Firmware upgradeable.
  • 64K data flash.
MOD5





 never released.

  • 4-pin black connector for USB adapter
  • 4-digit LCD display
  • 1.69" x 0.92" x 0.37"
    42mm x 23.4mm x 9.4mm
  • 8 grams.
  • 3.0 - 15.0 volts DC.
  • 27 milliamps.
  • ARM LPC2103 60MHz processor
  • Crystal controlled
  • Reverse polarity protection
  • 3.3v power from USB adapter
  • Software configurable for both ZLog and ZF5J functions.
MOD4

  • USB on board
  • 4-digit LCD display
  • 1.57 x 0.92 x 0.37.
    40 mm x 23.4 mm x 9.4 mm.
  • 8 grams.
  • 3.7 30.0 volts DC.
  • 16 milliamps (backlight on).
    13 milliamps (backlight off).
  • LPC922 8051 8MHz processor
  • "B" version supports both ZLog and ZF5J functions depending on position of solder jumper.
  • 32K data flash.

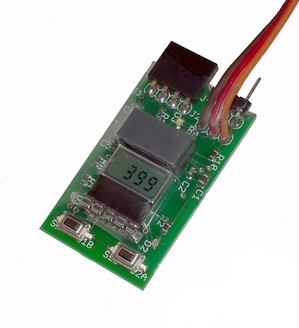

MOD3

  • 4-pin black connector for USB adapter
  • 4-digit LCD display
  • 1.57 x 0.92 x 0.37.
    40 mm x 23.4 mm x 9.4 mm.
  • 8 grams.
  • 4.0 30.0 volts DC.
  • 16 milliamps (backlight on).
    13 milliamps (backlight off).
  • LPC931 8051 8MHz processor
  • 32K data flash
MOD2



  • 4-pin white connector for USB / RS232 adapters
  • LED alphanumeric display
  • Small pressure sensor
  • 2.6 x 1.0 x 0.3.
    67 mm x 25 mm x 8 mm.
  • 12 grams.
  • 4.0 15.0 volts DC.
  • 140 milliamps (display active).
    30 milliamps (display blanked).
  • LPC931 8051 8MHz processor
  • 32K data flash

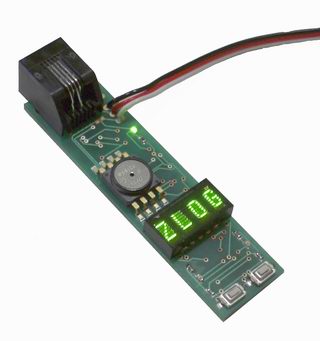

MOD1

  • RJ-11 jack with serial connector cable
  • LED alphanumeric display
  • Large pressure sensor
  • 3.0 x 0.8 x 0.625.
    77 mm x 20 mm x 16 mm.
  • 14 grams.
  • 5.0 volts regulated DC (supplied from BEC).
    5.5 12.0 volts DC.
  • 70 milliamps (display active).
    20 milliamps (display blanked).
  • LPC931 8051 8MHz processor
  • 8K data flash
