Have you ever wondered how high your Radio Controlled model could go? Now you can find out. Just install ZLog on your plane - be it a parkflyer, sailplane, hotliner, or 3D aerobatic. At only 8 grams, your plane won't know it's there. Instantly know how high your flight went with the onboard display. You can also record the complete flight for analysis on your PC with the serial or USB interface.

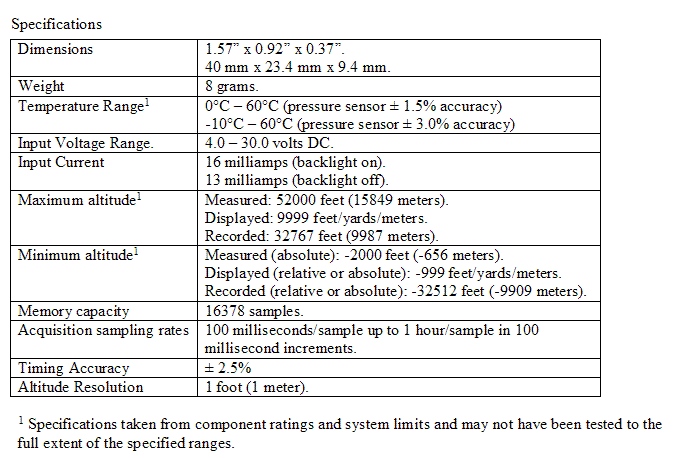

Key Features (click to see complete specifications)

Onboard display shows altitude information in real-time.
Tracks maximum altitude - find out how high your aircraft flew!
Display and record altitude in feet or meters.
Altitude resolution of 1 foot/meter.
Record altitude data for later review.
Configurable data recording rate as fast as 10 samples per second.

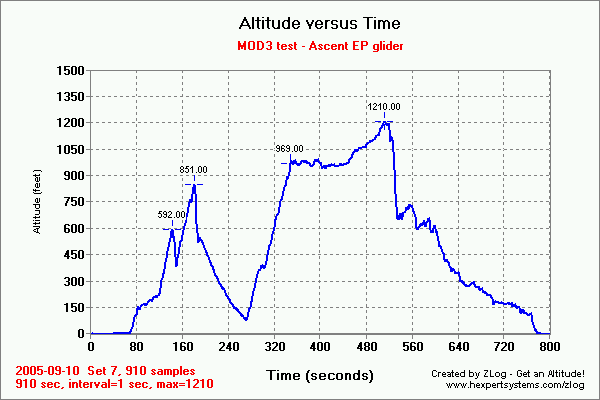

PC Interface for configuration and data download, plot, and analysis.
Onboard controls allow configuration in the field.
Include PC software.
Marks altitude data when triggered from an external signal.
Exports data in Excel .csv format or as GIF, bitmap or JPEG images.
Accepts wide range of input power: 4 - 15 volts. Power from your aircraft receiver.
Firmware upgradeable.
Only 0.28 ounces (8 grams).
1.57" x 0.92" x 0.37" (40 mm x 23.4 mm x 9.4 mm).

Read the ZLog Review in the July 2005 issue of Fly RC magazine:

Fly RC July 2005 Review

Read the ZLog Review in the LiftZone online:

LiftZone Review

Check out the ZLog discussions on RC Groups:

Here's How High I Flew Today - Part I
Here's How High I Flew Today - Part II
ZLog MOD2

Also see the manual online for complete details:

ZLog Manual (pdf)

Contact us with any questions.

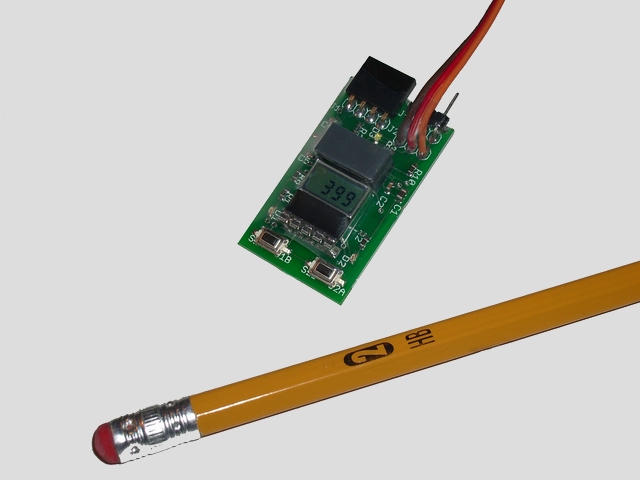

	ZLog MOD3 Recording Altimeter with 32K memory Latest ZLog Install Files ZLog Support Files	BUY NOW

ZLog requires the USB Adapter interface to download and view data on the PC

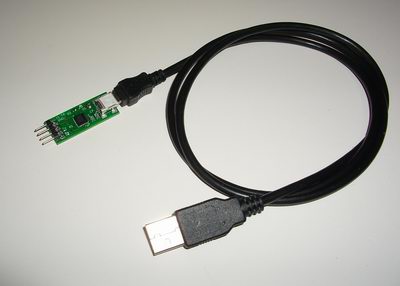

	USB Interface Adapter	BUY NOW

History of ZLog models

Third-Party Accessories

Check out the new video overlay device from DPC Video Products! Vizion provides a live display of battery voltage, current, amateur radio callsign and flight time. By plugging in a ZLog altimeter, Vizion also displays real-time aircraft altitude.

Vizion Web Page

ZLog for Palm

An optional third-party Palm Pilot application is available. Interfaces with the ZLog to download and review your altitude data at the field using your Palm handheld device!

Palm ZLog Application

ZLog for Linux

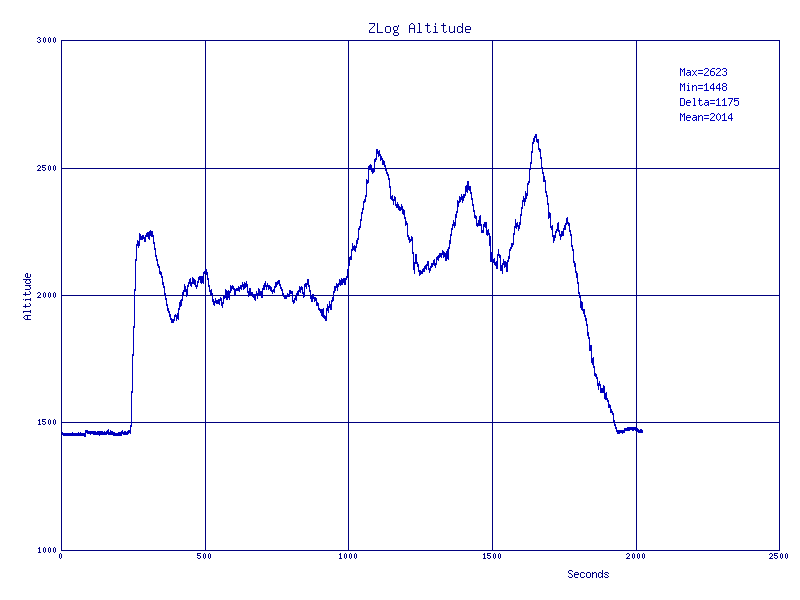

Perl script for Linux - allows you to download and graph ZLog data in Linux.
(Thanks Craig Lamparter!)

ZLog3.pl

ZLog for Mac

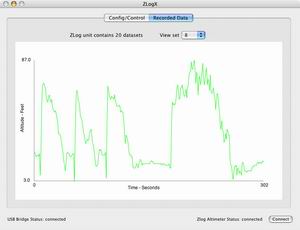

ZLogX, a Mac-OS version of the application, is available in beta.

ZLogX

Also check out the PRISM switch for Aerial Photography!
